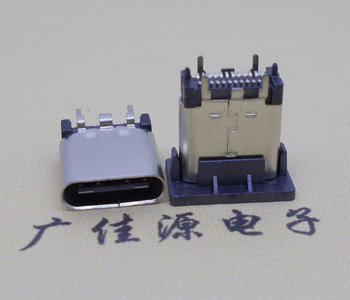

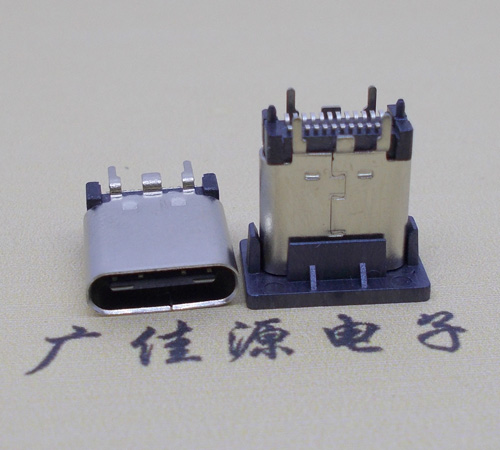

USB 3.1 Type-C短体母头,直立式10.5MM其它说明:

NOTES:
1.MATERIAL
  MOLDING: LCP UL94 V-0
  CONTACT:COPPER
          GOLD PLATED 30u" Min ON CONTACT AREA,100u''
          Min TIN (LEAD FREE) ON SOLDER AREA
SHELL: SUS304-H,T=0.30±0.03mm
       50u" NICKEL PLATING OVER ALL.
SHILD:SUS304-H,T=0.12±0.03mm
2.MECHANICAL:
  INSERTION: 5~20N
  EXTRACTION: 8~20N.
  DURABILITY: 10000 CYCLES
3.ELECTRICAL:
  CURRENT: 5A MIN FOR VBUS
          0.25A MIN FOR OTHER.
  VOLTAGE: 5VAC MAX
  WITHSTANDING VOLTAGE: 100V AC.
  CONTACT RESISTANCE: 40mΩ MAX.
  INSULATION RESISTANCE: 100MΩ MIN.
4.ENVIRONMENTAL
  TEMPERATURE RANGE -55°C ~ +85°C
